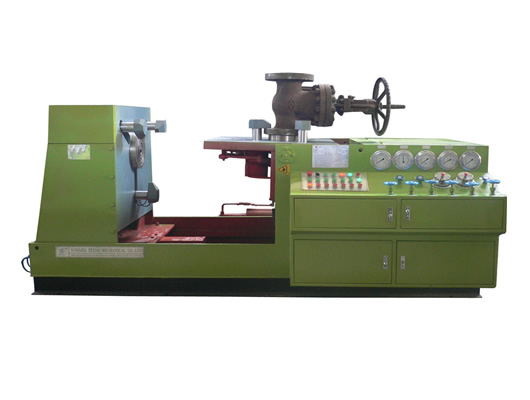

JWZ Type valve test bench
Message If you want any further detail data and drawing,please contact us.
.jpg)
valve test bed,valve test bench,Valve testing equipment
1.Valve testing equipment Technical performance and feature
● It's mostly suitable for the seal pressure of the flange straight connection valve and performance test
of the valve body strength pressure; The packing method adopts the flange terminal seal, holds the
press claw clamp and carries out the working test to the valve flange reverse side.The test result has
no the influence of outside force, fully meet the GB/T 13927-2008, JB/T 9092-99, the API 598 requirements.
● The valve can turn 90° working during testing, especially suitable for air-tightness.
● The system equips with the high and low pressure water pump device to be used for the test medium circulation
storage.
● The pressure trial medium is water, air and kerosene that can be selected freely by users.
● During the course of presseure protection of water or air test, any button can not work under the
condition of which the tested valve cavity has high pressure, it can work nornmally until leaking the
pressure to no pressure (make sure safety while working).
● The test bench is equipped with an automatic oil pressure discharge system. As it is u of tsed,
a high pressure condition and pressure discharge condition can be changed over to effectively
reduce the oil temperature, elongate life of the test bench and save energy.
● It sets the pressure trial safe protective device.

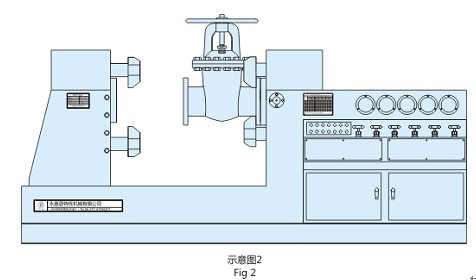

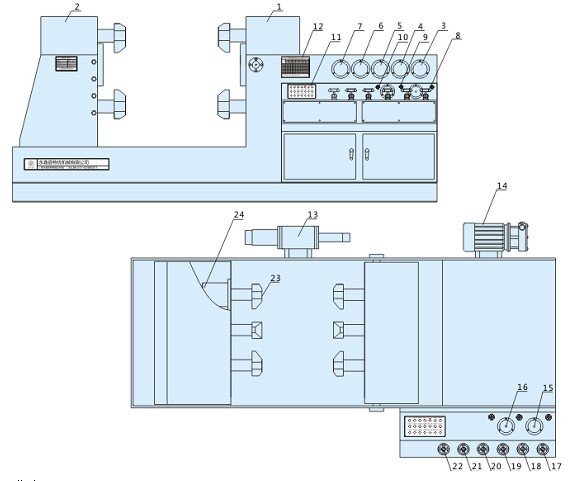

2.JWZ type hydraulic valve test bench (outline schematic figure)
.jpg)
1. Working panel 2. Moveable back frame 3. Low-pressure gauge
4. Middle-pressure gauge 5. High-pressure gauge 6. Right clamping gauge
7. Left clamping meter 8. Low-pressure gauge switch 9. Middle-pressure switc
10. High-pressure gauge switch 11. Button operation board 12. Pressure contrast lis t
13.Hight-pressure water pump 14. Low-pressure water pump 15. Low-pressure control form
16. High-pressure control form 17. Water general switch 18. Gas general switch
19. Right inlet for gas and water 20. Left inlet for gas and water 21. Right pressure relieving switch
22. Left pressure relieving switch 23. Clamping claw 24. Clamping oil cylinder

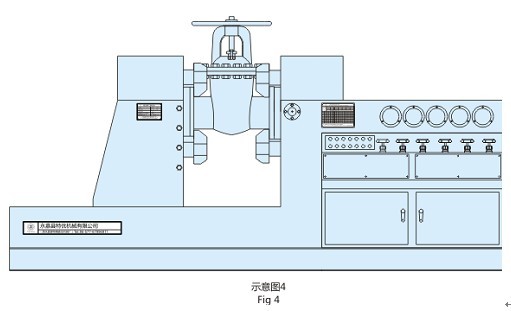

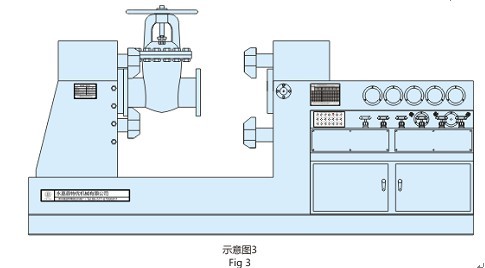

3.JWZ type hydraulic valve test bench (illustration)

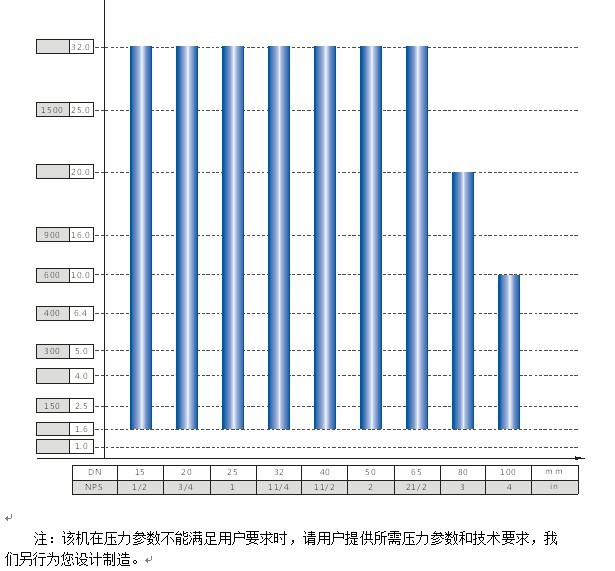

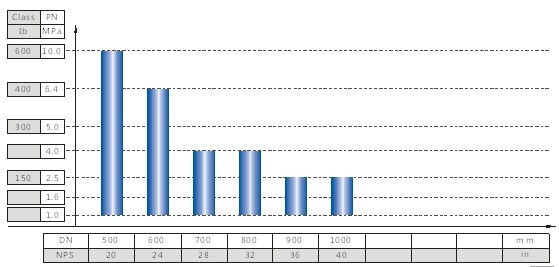

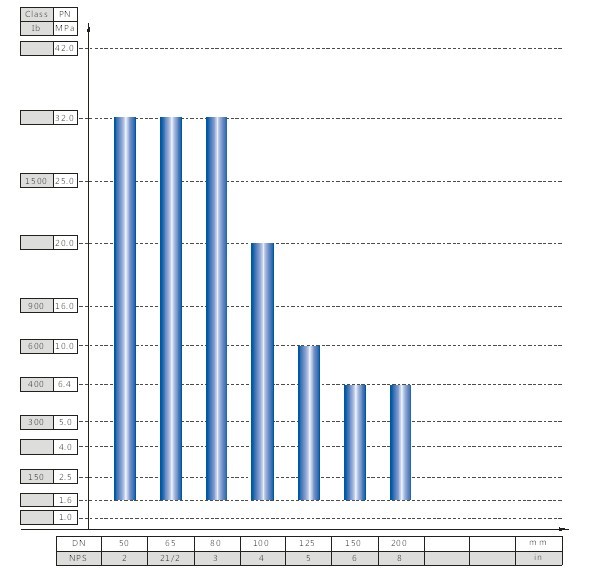

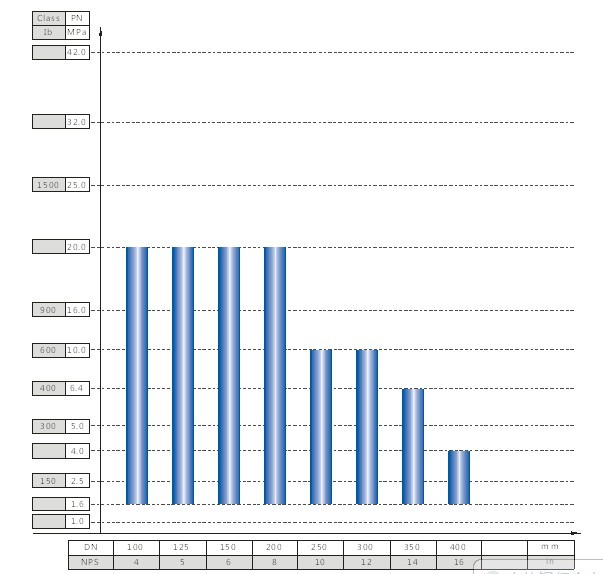

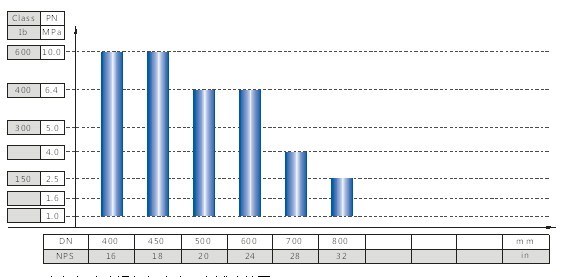

4.1The test range of valve nominal diameter and nominal pressure for JWZ-100 model
4.2The test range of valve nominal diameter and nominal pressure for JWZ-200 model

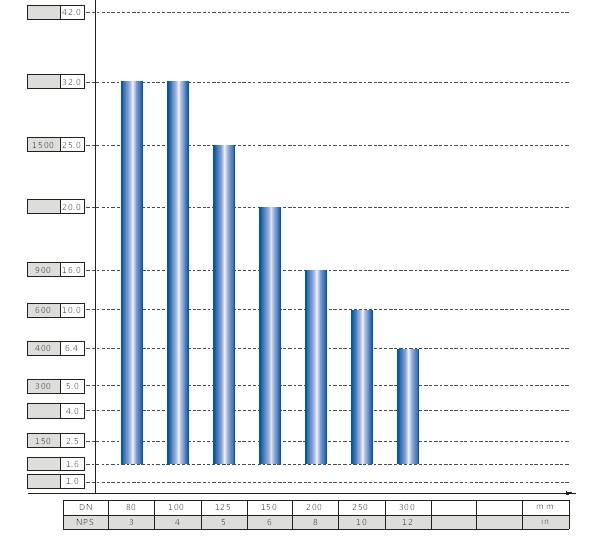

4.3The test range of valve nominal diameter and nominal pressure for JWZ-300 model

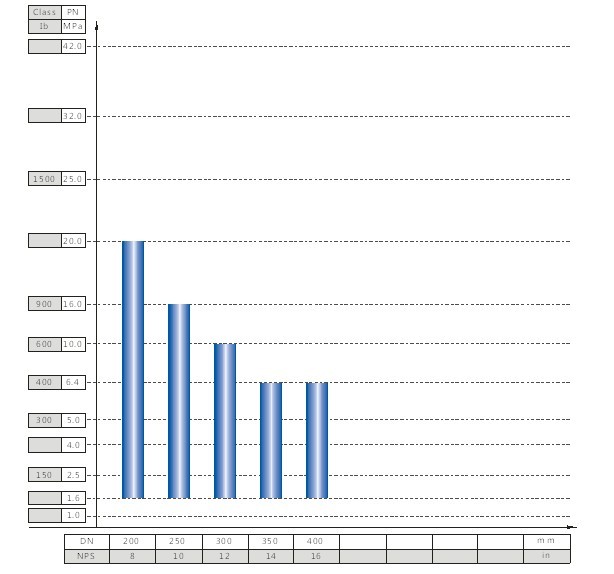

4.4The test range of valve nominal diameter and nominal pressure for JWZ-400 model (handtailor)

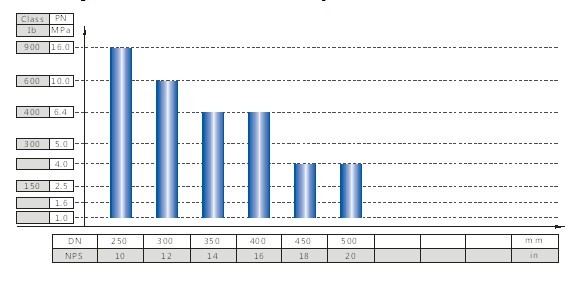

4.5The test range of valve nominal diameter and nominal pressure for JWZ-400 model
.jpg)

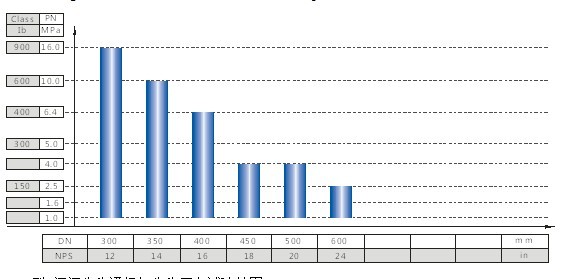

4.6The test range of valve nominal diameter and nominal pressure for JWZ-500 model
4.7The test range of valve nominal diameter and nominal pressure for JWZ-600 model
4.8The test range of valve nominal diameter and nominal pressure for JWZ-800 model
4.9The test range of valve nominal diameter and nominal pressure for JWZ-1000 model
5.valve test bench clamping cylinder pressure contrast table
JWZ-100type clamping cylinder pressure contrast table
公稱 通徑 (DN) |
Nominal pressure of valve Mpa/class | ||||||||||||||||||
| 1.6 | 2.5 | 4.0 | 6.4 | 10.0 | 16.0 | 20.0 | 25.0 | 32.0 | |||||||||||
| 150 | 300 | 400 | 600 | 900 | 1500 | ||||||||||||||
| Hydraulic system pressure (Pressure increasing) Mpa | |||||||||||||||||||
| in | mm | PN | PS | PN | PS | PN | PS | PN | PS | PN | PS | PN | PS | PN | PS | PN | PS | PN | PS |
| 1/2 | 15 | 3.0 | 3.0 | 3.0 | 3.0 | 3.0 | 3.0 | 3.0 | 3.0 | 3.0 | 3.0 | 3.0 | 3.0 | 3.0 | 3.0 | 3.0 | 3.0 | 4.0 | 5.0 |
| 3/4 | 20 | 3.0 | 3.0 | 3.0 | 3.0 | 3.0 | 3.0 | 3.0 | 3.0 | 3.0 | 3.0 | 3.0 | 3.0 | 3.0 | 3.0 | 3.0 | 4.0 | 4.0 | 6.0 |
| 1 | 25 | 3.0 | 3.0 | 3.0 | 3.0 | 3.0 | 3.0 | 3.0 | 3.0 | 3.0 | 3.0 | 3.0 | 4.0 | 4.0 | 6.0 | 5.0 | 6.5 | 5.5 | 8.5 |
| 11/4 | 32 | 3.0 | 3.0 | 3.0 | 3.0 | 3.0 | 3.0 | 3.0 | 3.0 | 3.0 | 4.0 | 4.0 | 5.0 | 5.0 | 7.5 | 6.0 | 9.0 | 8.0 | 12.0 |
| 11/2 | 40 | 3.0 | 3.0 | 3.0 | 3.0 | 3.0 | 3.0 | 3.0 | 4.0 | 4.0 | 5.5 | 5.5 | 8.0 | 7.0 | 10.5 | 8.5 | 13.0 | 11.0 | 16.5 |
| 2 | 50 | 3.0 | 3.0 | 3.0 | 3.0 | 3.0 | 3.0 | 4.0 | 5.0 | 5.0 | 7.5 | 7.5 | 11.0 | 9.5 | 14.5 | 12.0 | 18.0 | 15.0 | 22.5 |
| 21/2 | 65 | 3.0 | 3.0 | 3.0 | 3.0 | 3.0 | 4.0 | 4.0 | 6.0 | 6.0 | 9.0 | 10.0 | 15.0 | 12.0 | 18.0 | 15.0 | 22.5 | 17.0 | 25.5 |
| 3 | 80 | 3.0 | 3.0 | 3.0 | 4.0 | 4.0 | 6.0 | 6.0 | 9.0 | 10.0 | 15.0 | 15.0 | 22.5 | 19.0 | 27.5 | ||||
| 4 | 100 | 3.0 | 4.0 | 4.0 | 6.0 | 6.0 | 9.0 | 9.0 | 13.5 | 14.0 | 21.0 | ||||||||
| Note:1.When test the valve,PN(Airproof test),PS(Valve intension test). 2. When the valve less thanDN32-4.0Mpa，adjust then hydraulic system pressure to lower than 3.0Mpa,the cylinder can work. | |||||||||||||||||||
JWZ-200type clamping cylinder pressure contrast table
公稱 通徑(DN) |
Nominal pressure of valve Mpa/class | ||||||||||||||||||
| 1.6 | 2.5 | 4.0 | 6.4 | 10.0 | 16.0 | 20.0 | 25.0 | 32.0 | |||||||||||
| 150 | 300 | 400 | 600 | 900 | 1500 | ||||||||||||||
| Hydraulic system pressure (Pressure increasing) Mpa | |||||||||||||||||||
| in | mm | PN | PS | PN | PS | PN | PS | PN | PS | PN | PS | PN | PS | PN | PS | PN | PS | PN | PS |
| 2 | 50 | 3.0 | 3.0 | 3.0 | 3.0 | 3.0 | 3.0 | 3.0 | 3.0 | 3.0 | 4.0 | 4.0 | 5.0 | 5.5 | 8.0 | 7.0 | 10.5 | 9.0 | 13.5 |
| 21/2 | 65 | 3.0 | 3.0 | 3.0 | 3.0 | 3.0 | 3.0 | 3.0 | 4.0 | 4.0 | 5.5 | 6.0 | 9.0 | 7.5 | 11.0 | 9.0 | 13.5 | 12.0 | 18.0 |
| 3 | 80 | 3.0 | 3.0 | 3.0 | 3.0 | 3.0 | 4.0 | 4.0 | 6.0 | 6.0 | 8.5 | 9.0 | 13.5 | 12.0 | 18.0 | 15.0 | 21.0 | 18.0 | 27.0 |
| 4 | 100 | 3.0 | 3.0 | 3.0 | 4.0 | 4.0 | 5.0 | 5.5 | 8.0 | 8.5 | 13.0 | 14.0 | 21.0 | 17.0 | 25.5 | ||||
| 5 | 125 | 3.0 | 4.0 | 4.0 | 5.0 | 5.5 | 8.0 | 8.5 | 13.0 | 14.0 | 21.0 | ||||||||
| 6 | 150 | 4.0 | 5.0 | 5.0 | 6.5 | 7.0 | 10.5 | 11.0 | 16.5 | ||||||||||
| 8 | 200 | 5.0 | 6.5 | 7.0 | 10.5 | 11.0 | 17.0 | 18.0 | 27.0 | ||||||||||
JWZ-300type clamping cylinder pressure contrast table
公稱 通徑(DN) |
Nominal pressure of valve Mpa/class | ||||||||||||||||||
| 1.6 | 2.5 | 4.0 | 6.4 | 10.0 | 16.0 | 20.0 | 25.0 | 32.0 | |||||||||||
| 150 | 300 | 400 | 600 | 900 | 1500 | ||||||||||||||
| Hydraulic system pressure (Pressure increasing) Mpa | |||||||||||||||||||
| in | mm | PN | PS | PN | PS | PN | PS | PN | PS | PN | PS | PN | PS | PN | PS | PN | PS | PN | PS |
| 3 | 80 | 3.0 | 3.0 | 3.0 | 3.0 | 3.0 | 3.0 | 3.0 | 3.0 | 3.0 | 4.0 | 4.0 | 6.0 | 5.0 | 7.5 | 6.0 | 9.0 | 8.0 | 12.0 |
| 4 | 100 | 3.0 | 3.0 | 3.0 | 3.0 | 3.0 | 3.0 | 3.0 | 4.0 | 4.0 | 6.0 | 6.0 | 9.0 | 7.0 | 11.0 | 9.0 | 13.5 | 12.0 | 18.0 |
| 5 | 125 | 3.0 | 3.0 | 3.0 | 3.0 | 3.0 | 4.0 | 4.0 | 6.0 | 6.0 | 9.0 | 9.0 | 13.5 | 11.0 | 16.5 | 14.0 | 21.0 | ||
| 6 | 150 | 3.0 | 3.0 | 3.0 | 3.0 | 4.0 | 5.0 | 5.0 | 7.5 | 7.5 | 11.0 | 12.0 | 18.0 | 15.0 | 22.5 | ||||
| 8 | 200 | 3.0 | 3.0 | 3.0 | 4.0 | 4.5 | 7.0 | 8.0 | 12.0 | 12.0 | 18.0 | 19.5 | 30.0 | ||||||
| 10 | 250 | 3.0 | 5.0 | 5.0 | 7.0 | 7.5 | 11.0 | 12.0 | 18.0 | 18.0 | 27.0 | ||||||||
| 12 | 300 | 4.0 | 6.0 | 6.5 | 10.0 | 10.5 | 16.0 | 17.0 | 25.5 | ||||||||||
| Note:1.When test the valve.PN(Airproof test).PS(valve intension test). 2.When the valve less than DN125-2.5Mpa.adjust the hydraulic system pressure to lower than 3.0Mpa.the cyinder can work. |
|||||||||||||||||||
JWZ-400type clamping cylinder pressure contrast table
公稱通徑(DN) |
Nominal pressure of valve Mpa/class | ||||||||||||||
| 1.6 | 2.5 | 4.0 | 6.4 | 10.0 | 16.0 | 20.0 | |||||||||
| 150 | 300 | 400 | 600 | 900 | |||||||||||
| Hydraulic system pressure (Pressure increasing) Mpa | |||||||||||||||
| in | mm | PN | PS | PN | PS | PN | PS | PN | PS | PN | PS | PN | PS | PN | PS |
| 8 | 200 | 3.0 | 3.0 | 3.0 | 3.0 | 3.0 | 4.5 | 5.0 | 7.5 | 7.0 | 7.0 | 11.0 | 16.5 | 14.0 | 22.0 |
| 10 | 250 | 3.0 | 3.0 | 3.0 | 4.5 | 4.5 | 6.5 | 7.0 | 10.5 | 11.0 | 16.0 | 17.0 | 25.5 | ||
| 12 | 300 | 3.0 | 3.0 | 4.0 | 6.0 | 6.0 | 9.0 | 9.5 | 14.5 | 15.0 | 22.0 | ||||
| 14 | 350 | 3.5 | 5.0 | 5.0 | 7.5 | 8.0 | 12.0 | 13.0 | 19.5 | ||||||
| 16 | 400 | 4.0 | 6.0 | 6.5 | 10.0 | 10.5 | 16.0 | 16.0 | 24.0 | ||||||
| Note:1.When test the valve.PN(Airproof test).PS(valve intension test). 2.When the valve less than 1.6Mpa.adjust the hydraulic system pressure to lower than 3.0Mpa.the cyinder can work. |
|||||||||||||||
JWZ-500type clamping cylinder pressure contrast table
公稱通徑 (DN) |
Nominal pressure of valve Mpa/class | ||||||||||||||
| 1.0 | 1.6 | 2.5 | 4.0 | 6.4 | 10.0 | 16.0 | |||||||||
| 150 | 400 | 600 | 900 | ||||||||||||
| Hydraulic system pressure (Pressure increasing) Mpa | |||||||||||||||
| in | mm | PN | PS | PN | PS | PN | PS | PN | PS | PN | PS | PN | PS | PN | PS |
| 10 | 250 | 3.0 | 3.0 | 3.0 | 3.0 | 3.0 | 4.0 | 5.0 | 7.5 | 8.0 | 12.0 | 12.0 | 18.0 | 18.0 | 27.0 |
| 12 | 300 | 3.0 | 3.0 | 3.0 | 4.0 | 4.0 | 6.0 | 6.5 | 10.0 | 10.0 | 15.0 | 16.0 | 24.0 | ||
| 14 | 350 | 3.0 | 3.0 | 4.0 | 5.0 | 5.5 | 8.5 | 9.0 | 13.5 | 14.0 | 21.0 | ||||
| 16 | 400 | 3.0 | 4.0 | 5.0 | 6.5 | 7.0 | 10.5 | 11.0 | 16.5 | 17.0 | 25.5 | ||||
| 18 | 450 | 4.0 | 5.0 | 5.5 | 8.5 | 9.0 | 13.5 | 14.0 | 21.0 | ||||||
| 20 | 500 | 4.0 | 6.0 | 7.0 | 10.5 | 11.0 | 16.5 | 17.0 | 25.5 | ||||||
| Note:1.When test the valve.PN(Airproof test).PS(valve intension test). 2.When the valve less than DN300-1.6Mpa.adjust the hydraulic system pressure to lower than 3.0Mpa.the cyinder can work. |
|||||||||||||||
JWZ-600type clamping cylinder pressure contrast table
公稱通徑(DN) |
Nominal pressure of valve Mpa/class | ||||||||||||||
| 1.0 | 1.6 | 2.5 | 4.0 | 6.4 | 10.0 | 16.0 | |||||||||
| 150 | 400 | 600 | 900 | ||||||||||||
| Hydraulic system pressure (Pressure increasing) Mpa | |||||||||||||||
| in | mm | PN | PS | PN | PS | PN | PS | PN | PS | PN | PS | PN | PS | PN | PS |
| 12 | 300 | 3.0 | 3.0 | 3.0 | 3.0 | 4.0 | 6.0 | 6.0 | 9.0 | 9.0 | 12.0 | 13.0 | 20.0 | 21.0 | 31.5 |
| 14 | 350 | 3.0 | 3.0 | 3.0 | 3.0 | 5.0 | 7.0 | 7.0 | 10.0 | 12.0 | 18.0 | 18.0 | 27.0 | ||
| 16 | 400 | 3.0 | 4.0 | 4.0 | 6.0 | 6.5 | 10.0 | 11.0 | 16.0 | 17.0 | 25.0 | ||||
| 20 | 500 | 4.0 | 8.0 | 7.0 | 10.0 | 10.0 | 15.0 | 16.0 | 24.0 | ||||||
| 24 | 600 | 6.0 | 9.0 | 8.5 | 14.0 | 15.0 | 22.0 | ||||||||
| Note:1.When test the valve.PN(Airproof test).PS(valve intension test). 2.When the valve less than DN300-1.6Mpa.adjust the hydraulic system pressure to lower than 3.0Mpa.the cyinder can work.。 |
|||||||||||||||
JWZ-800type clamping cylinder pressure contrast table
公稱通徑(DN) |
Nominal pressure of valve Mpa/class | ||||||||||||
| 1.0 | 1.6 | 2.5 | 4.0 | 6.4 | 10.0 | ||||||||
| 150 | 400 | 600 | |||||||||||
| Hydraulic system pressure (Pressure increasing) Mpa | |||||||||||||
| in | mm | PN | PS | PN | PS | PN | PS | PN | PS | PN | PS | PN | PS |
| 16 | 400 | 3.0 | 3.0 | 3.0 | 4.0 | 4.0 | 5.0 | 5.5 | 8.0 | 9.0 | 13.5 | 14.0 | 21.0 |
| 18 | 450 | 3.0 | 3.0 | 4.0 | 5.0 | 5.0 | 7.0 | 7.0 | 10.5 | 11.5 | 17.5 | 18.0 | 27.0 |
| 20 | 500 | 3.0 | 4.0 | 4.0 | 5.0 | 5.5 | 8.0 | 8.5 | 13.0 | 14.0 | 21.0 | ||
| 24 | 600 | 4.0 | 5.0 | 5.0 | 7.5 | 7.5 | 11.0 | 12.0 | 18.0 | 19.5 | 29.0 | ||
| 28 | 700 | 4.0 | 6.0 | 6.5 | 10.0 | 10.0 | 15.0 | 16.5 | 25.0 | ||||
| 32 | 800 | 5.5 | 8.0 | 8.5 | 12.5 | 13.0 | 19.5 | ||||||
| Note:1.When test the valve.PN(Airproof test).PS(valve intension test). 2.When the valve less than DN300-1.6Mpa.adjust the hydraulic system pressure to lower than 3.0Mpa.the cyinder can work.。 |
|||||||||||||
JWZ-1000type clamping cylinder pressure contrast table
公稱通徑(DN) |
Nominal pressure of valve Mpa/class | ||||||||||||
| 1.0 | 1.6 | 2.5 | 4.0 | 6.4 | 10.0 | ||||||||
| 150 | 400 | 600 | |||||||||||
| Hydraulic system pressure (Pressure increasing) Mpa | |||||||||||||
| in | mm | PN | PS | PN | PS | PN | PS | PN | PS | PN | PS | PN | PS |
| 20 | 500 | 3.0 | 3.0 | 3.0 | 4.0 | 4.0 | 5.0 | 5.0 | 7.5 | 8.5 | 12.0 | 13.0 | 19.5 |
| 24 | 600 | 3.0 | 4.0 | 4.0 | 5.0 | 5.0 | 7.0 | 7.5 | 11.0 | 12.0 | 18.0 | 19.5 | 29.0 |
| 28 | 700 | 3.0 | 4.0 | 4.0 | 5.5 | 6.0 | 9.5 | 10.0 | 15.0 | 15.5 | 23.0 | ||
| 32 | 800 | 4.0 | 5.0 | 5.0 | 7.5 | 8.0 | 12.0 | 12.5 | 19.5 | 20.5 | 31.0 | ||
| 36 | 900 | 4.0 | 6.0 | 6.5 | 10.0 | 10.5 | 15.5 | 16.0 | 24.0 | ||||
| 40 | 1000 | 5.0 | 7.5 | 8.0 | 12.0 | 12.5 | 19.0 | 19.5 | 29.0 | ||||
| Note:1.When test the valve.PN(Airproof test).PS(valve intension test). 2.When the valve less than DN500-1.6Mpa.adjust the hydraulic system pressure to lower than 3.0Mpa.the cyinder can work. |
|||||||||||||
